20ft New Refrigerated Shipping Container

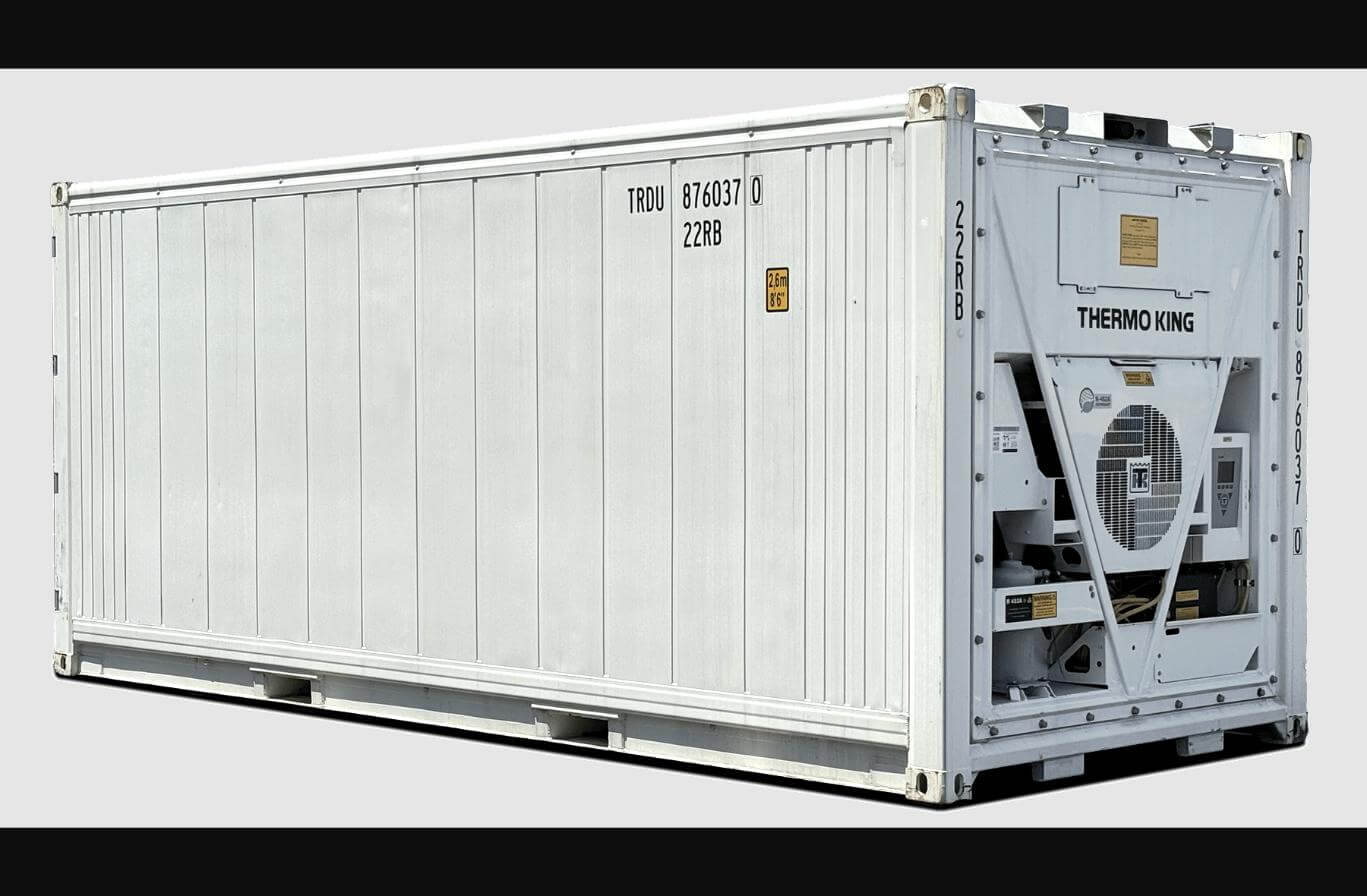

Cargo Co’s 20ft New Refrigerated Shipping Container is engineered from brand-new ISO-grade CORTEN steel and fitted exclusively with a factory-fresh Thermo King Magnum Plus refrigeration system. It is the ideal turnkey cold storage solution for frozen goods, fresh produce, pharmaceuticals, floral logistics, seafood and specialty products that demand reliable, precise temperature control across Australia.
The Thermo King Magnum Plus offers an industry-leading temperature range from -40°C to +21°C (-40°F to +70°F), giving you unmatched flexibility for both deep-freeze and chilled storage. Every unit ships ready to plug in to a standard 460V 3-phase electrical connection, with an optional dual-voltage transformer available for sites that only have 230V single-phase power.
Key Features & Benefits
- Brand-new construction built from ISO-grade CORTEN steel with marine-grade paint finish.
- 3″ closed-cell spray foam insulation on walls, ceiling and floor to maintain constant internal temperature.

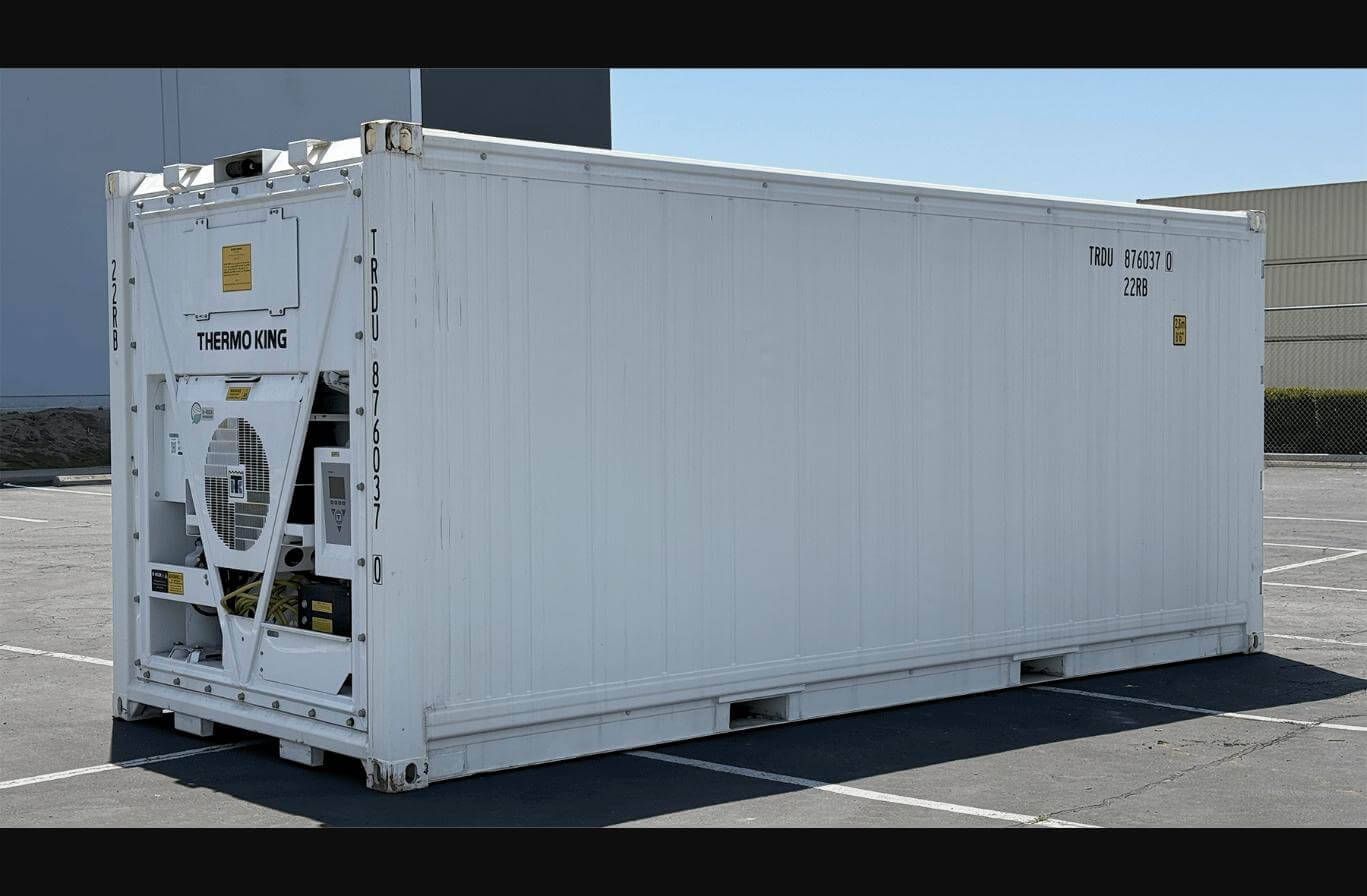

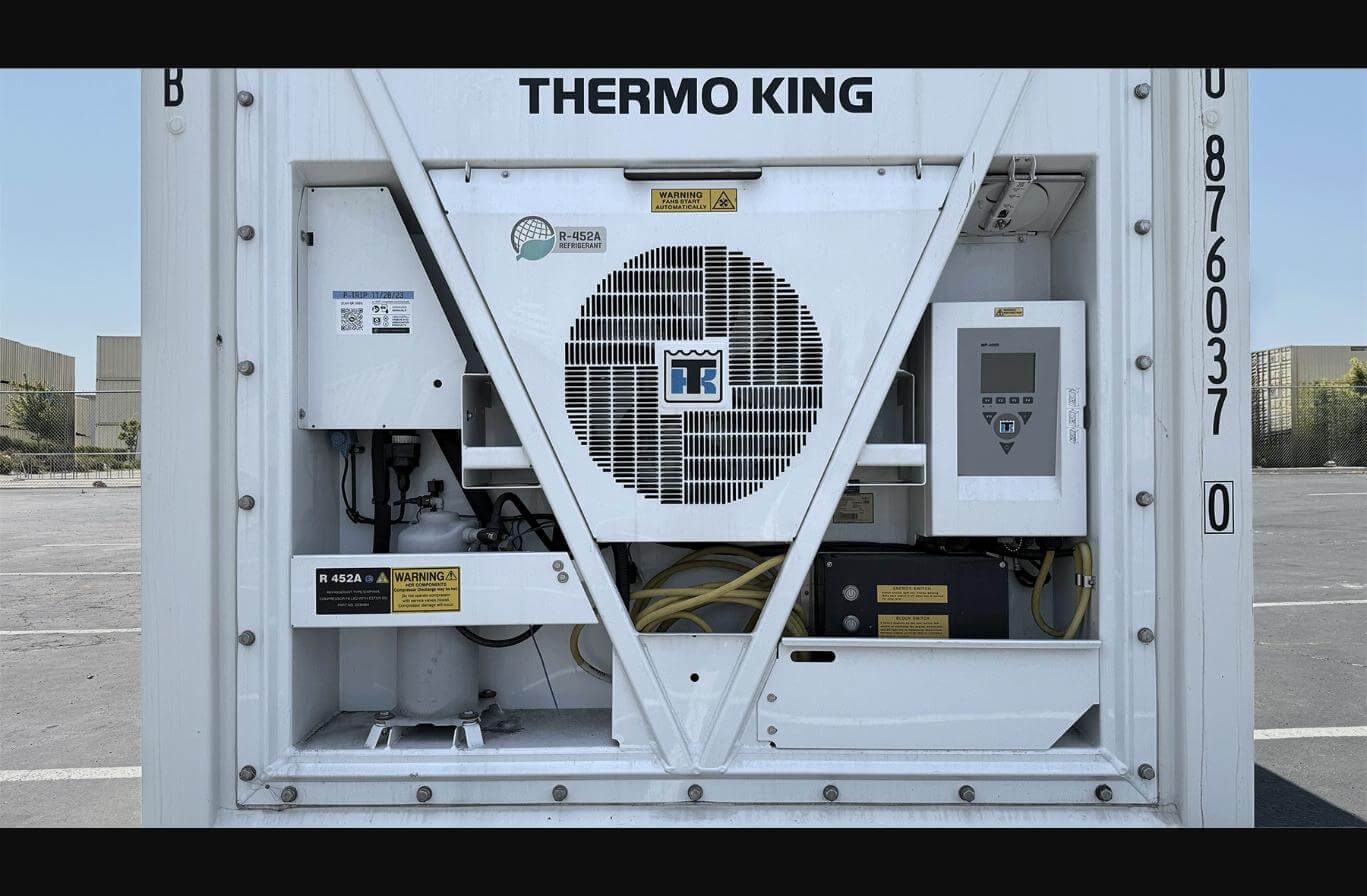

- Thermo King Magnum Plus refrigeration unit – the industry benchmark for reefer reliability.
- MP-3000a microprocessor controller with data logging, remote monitoring readiness and onboard diagnostics.

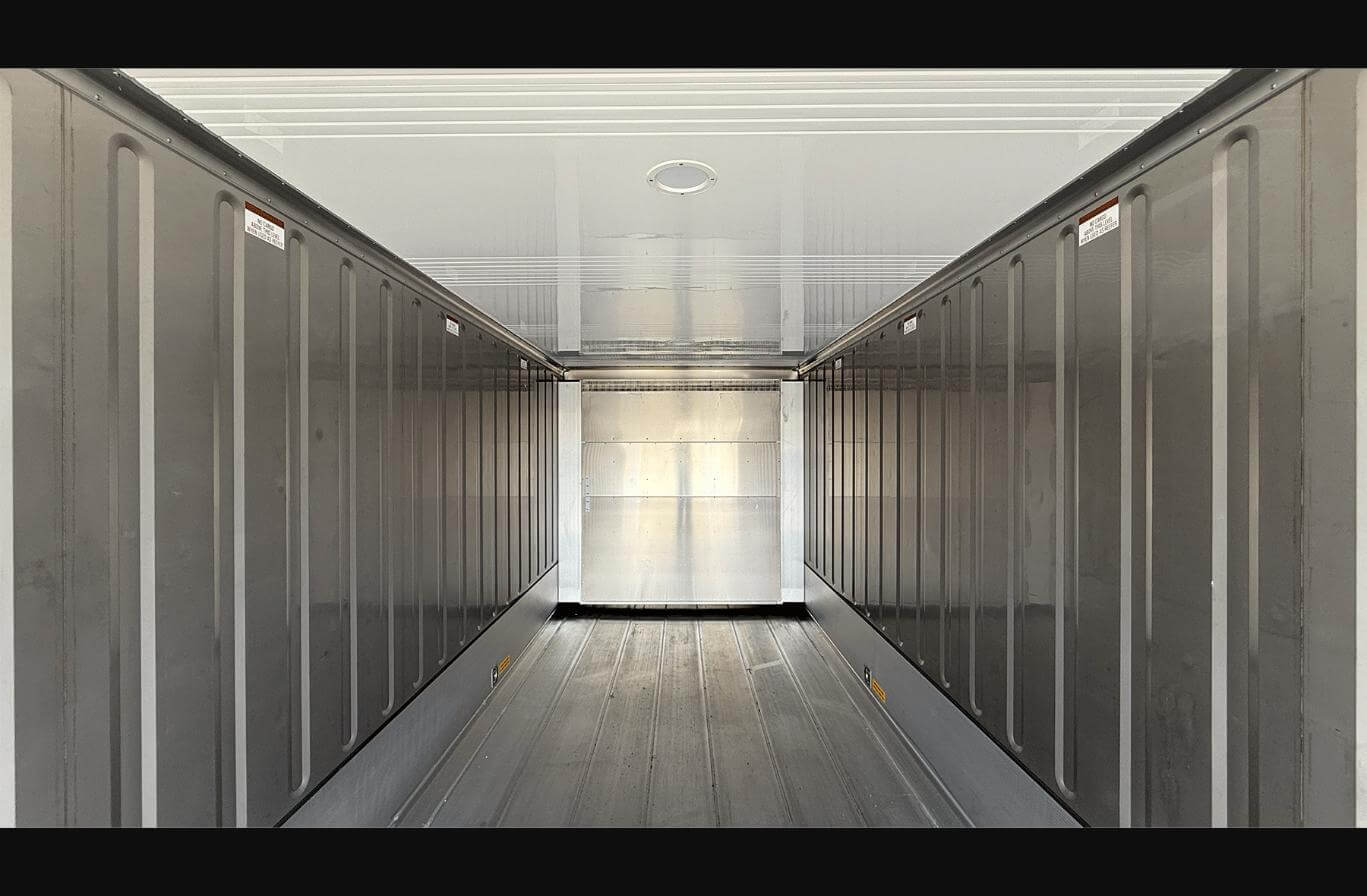

- Flat aluminium flooring with T-bar profile for full airflow underneath stored goods.

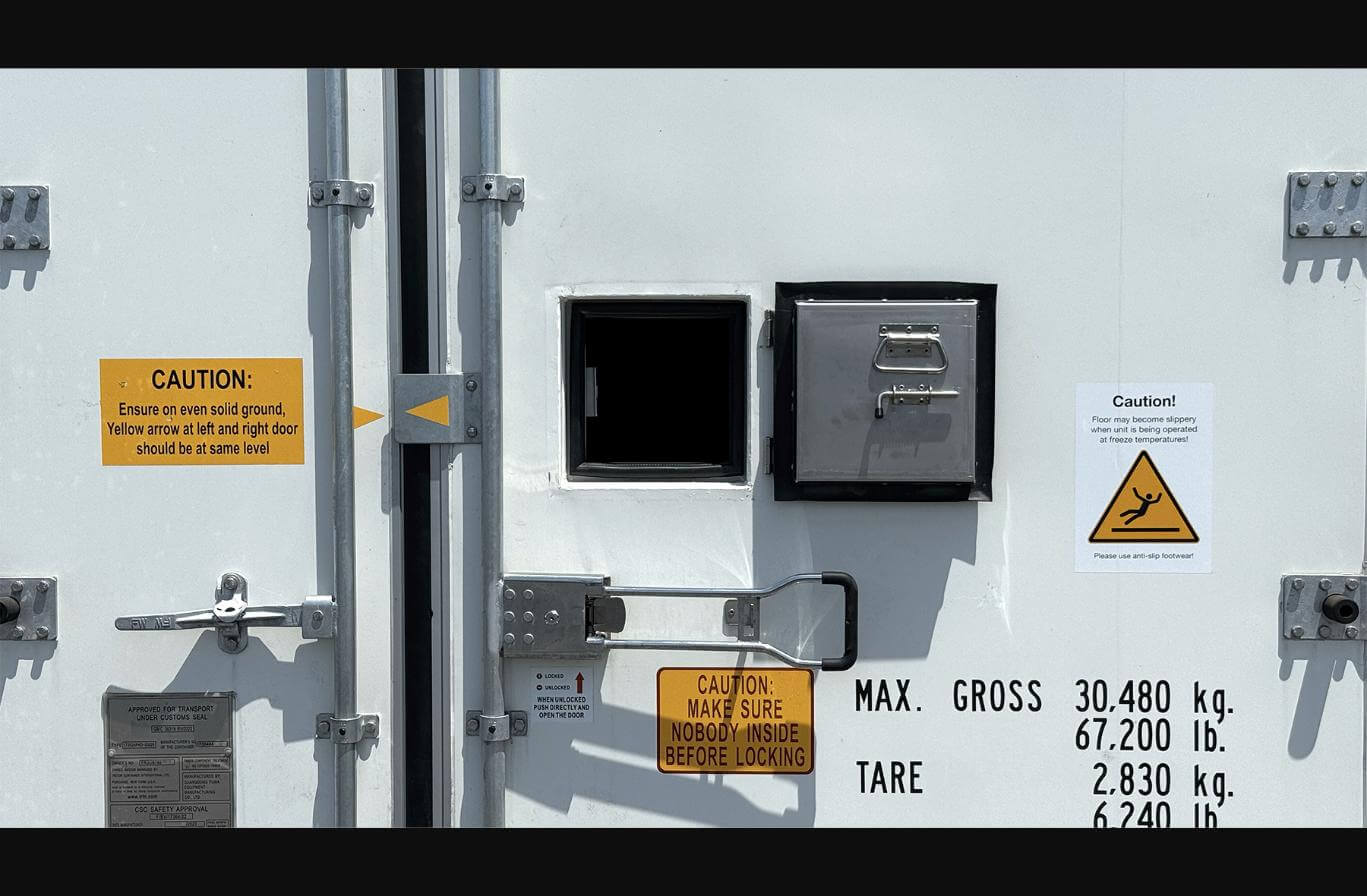

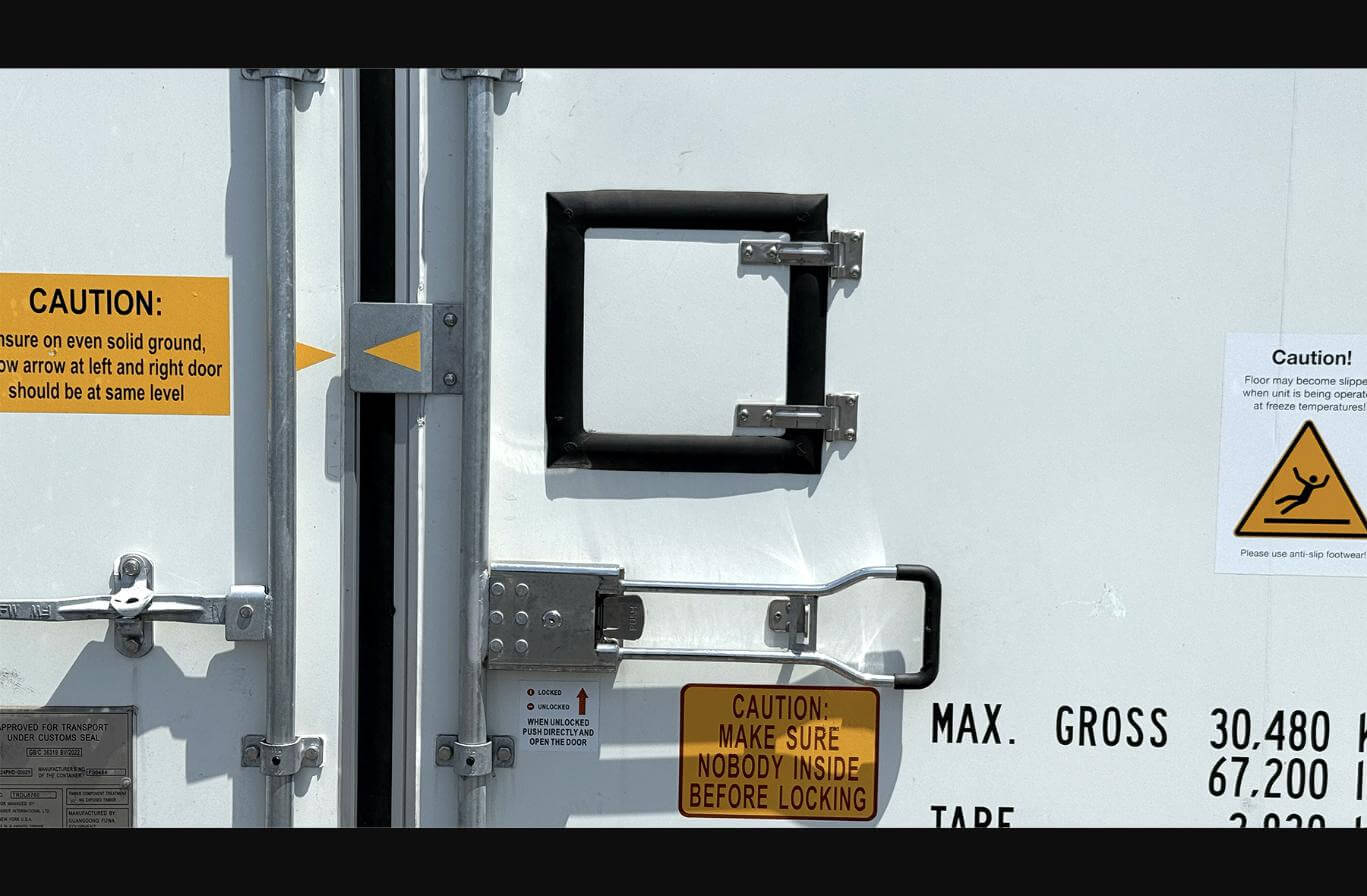

- Dual cargo swing doors with heavy-duty weather seals and multi-point locking rods.

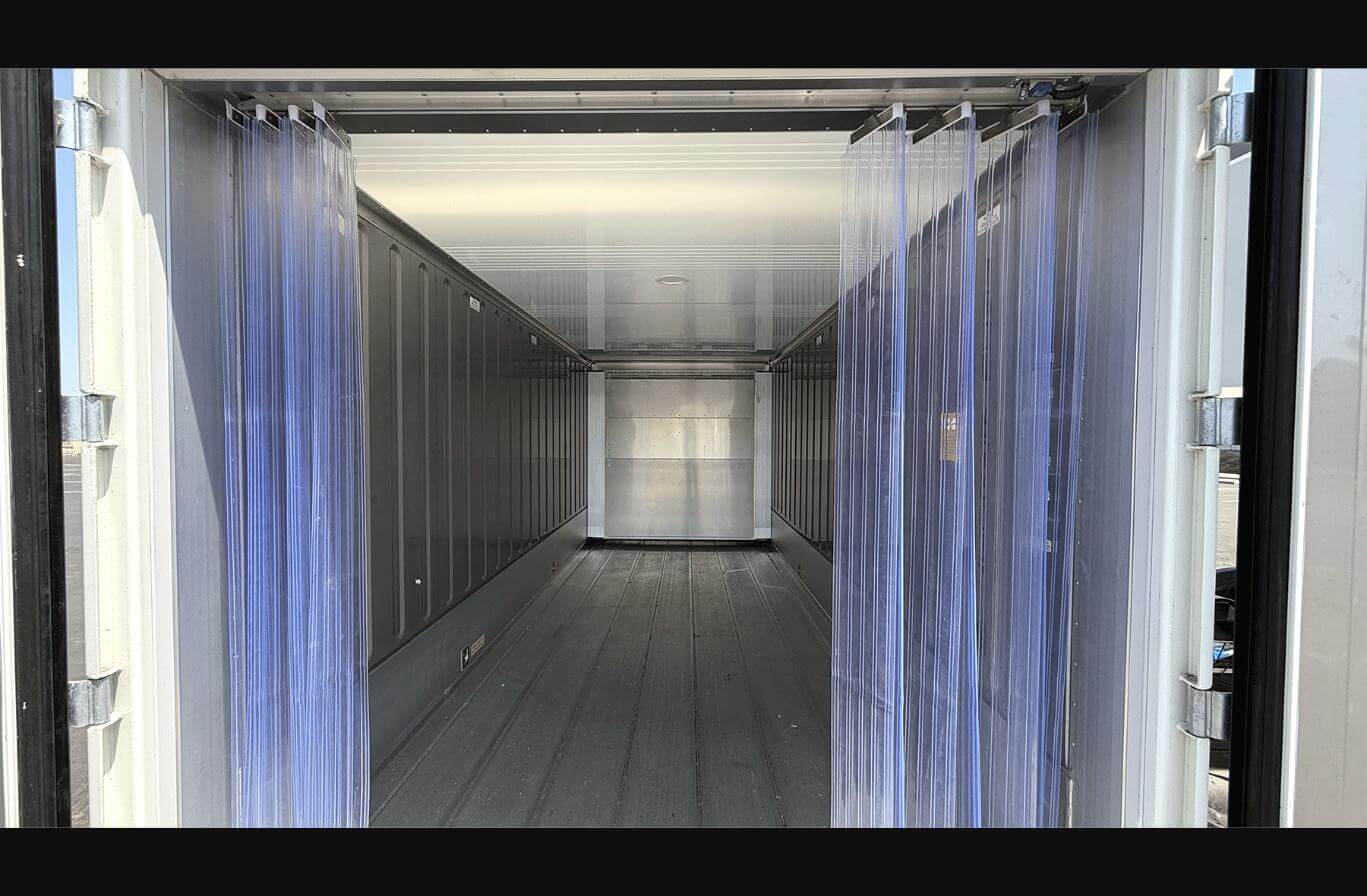

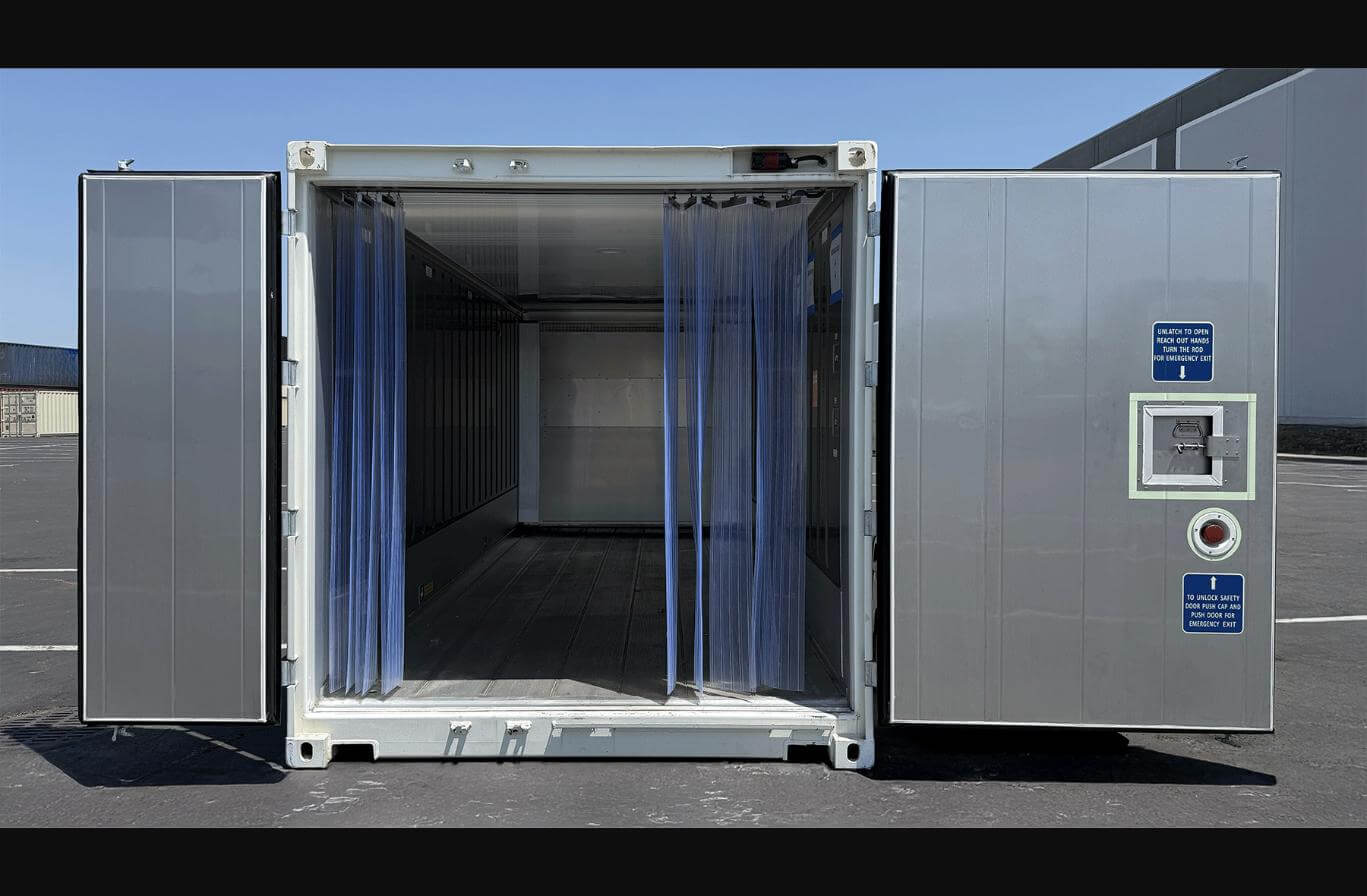

- PVC strip curtains at the cargo door to retain cold air during loading.

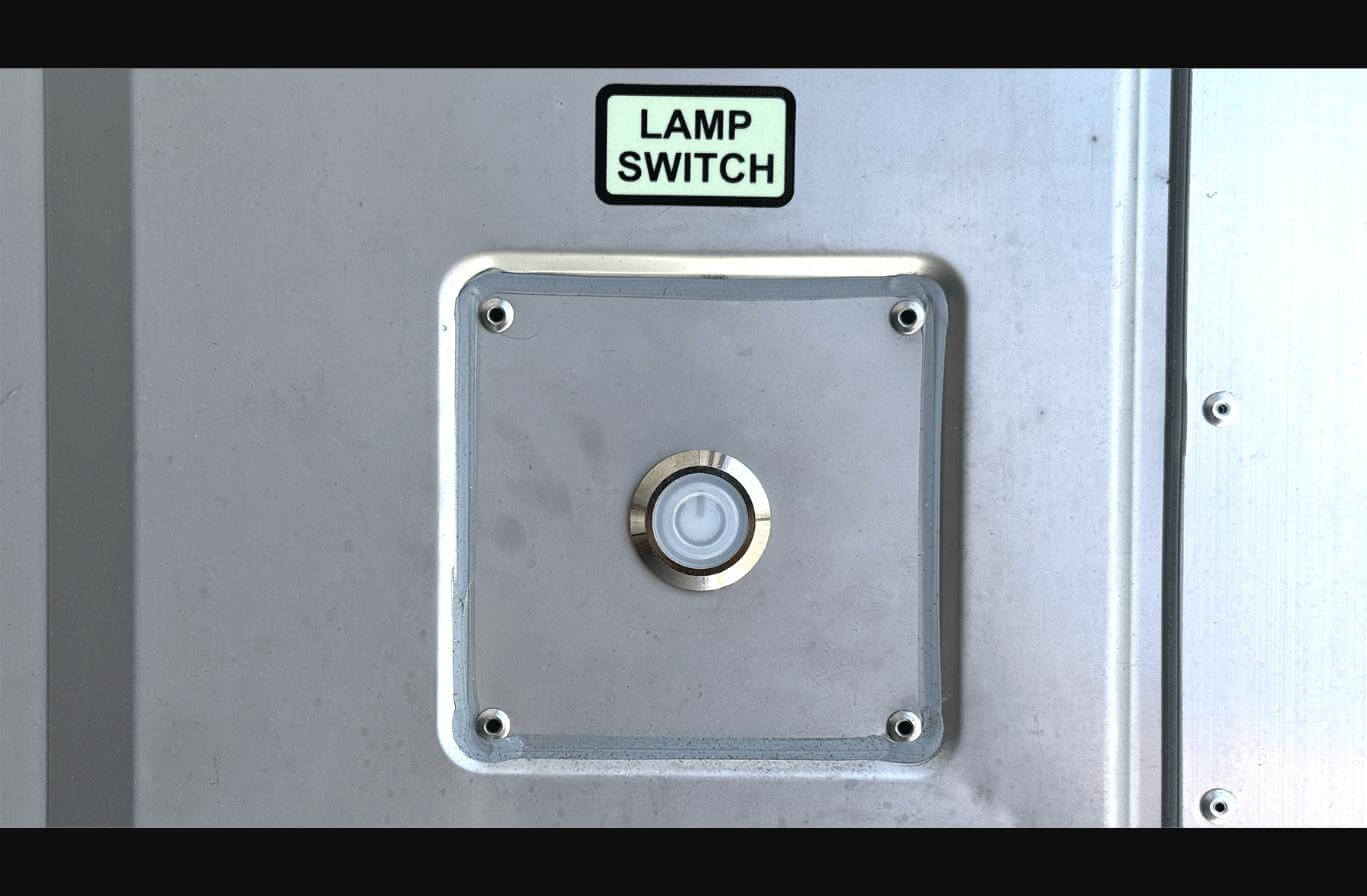

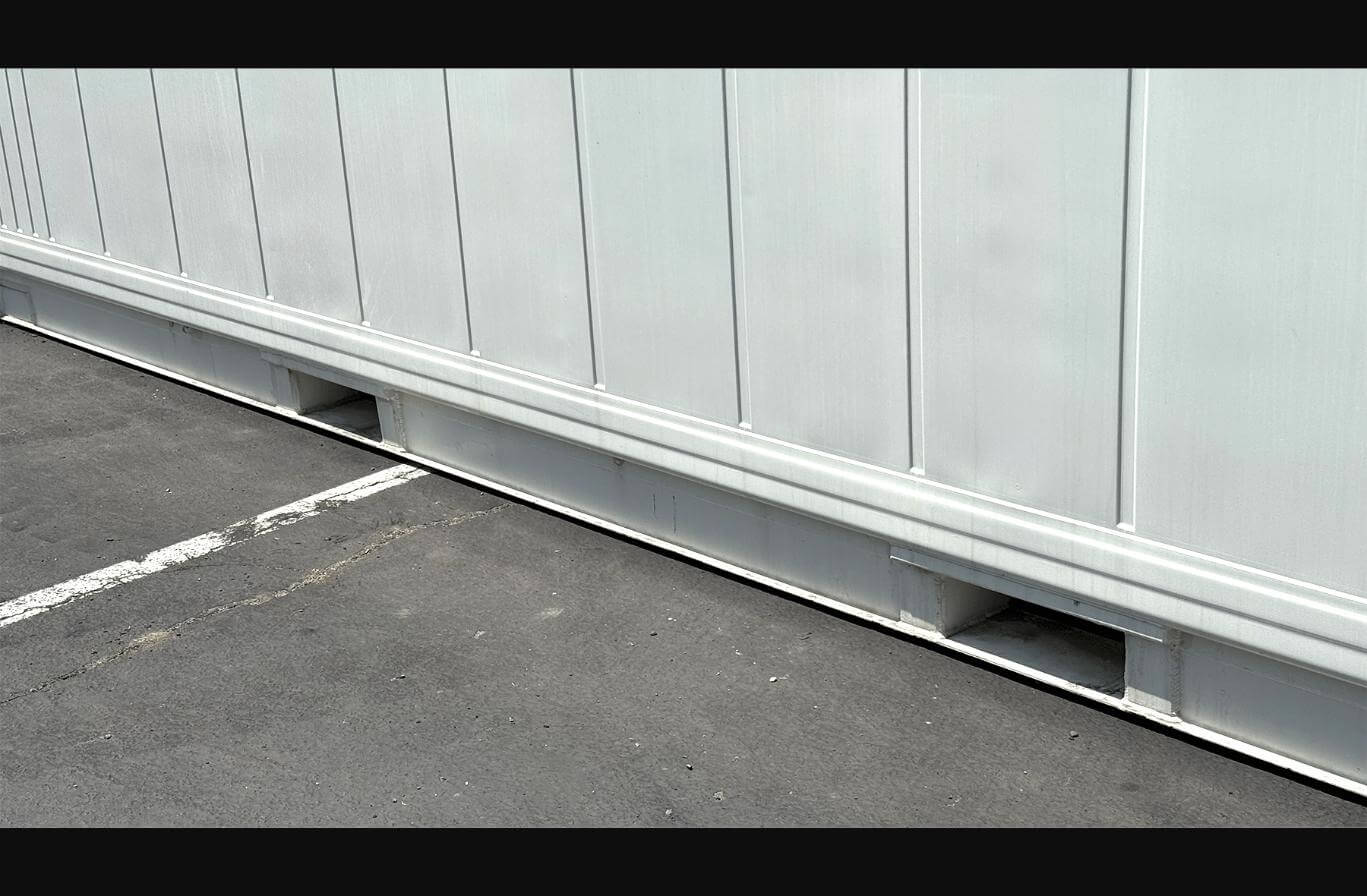

- Interior LED lighting and forklift pockets included as standard.

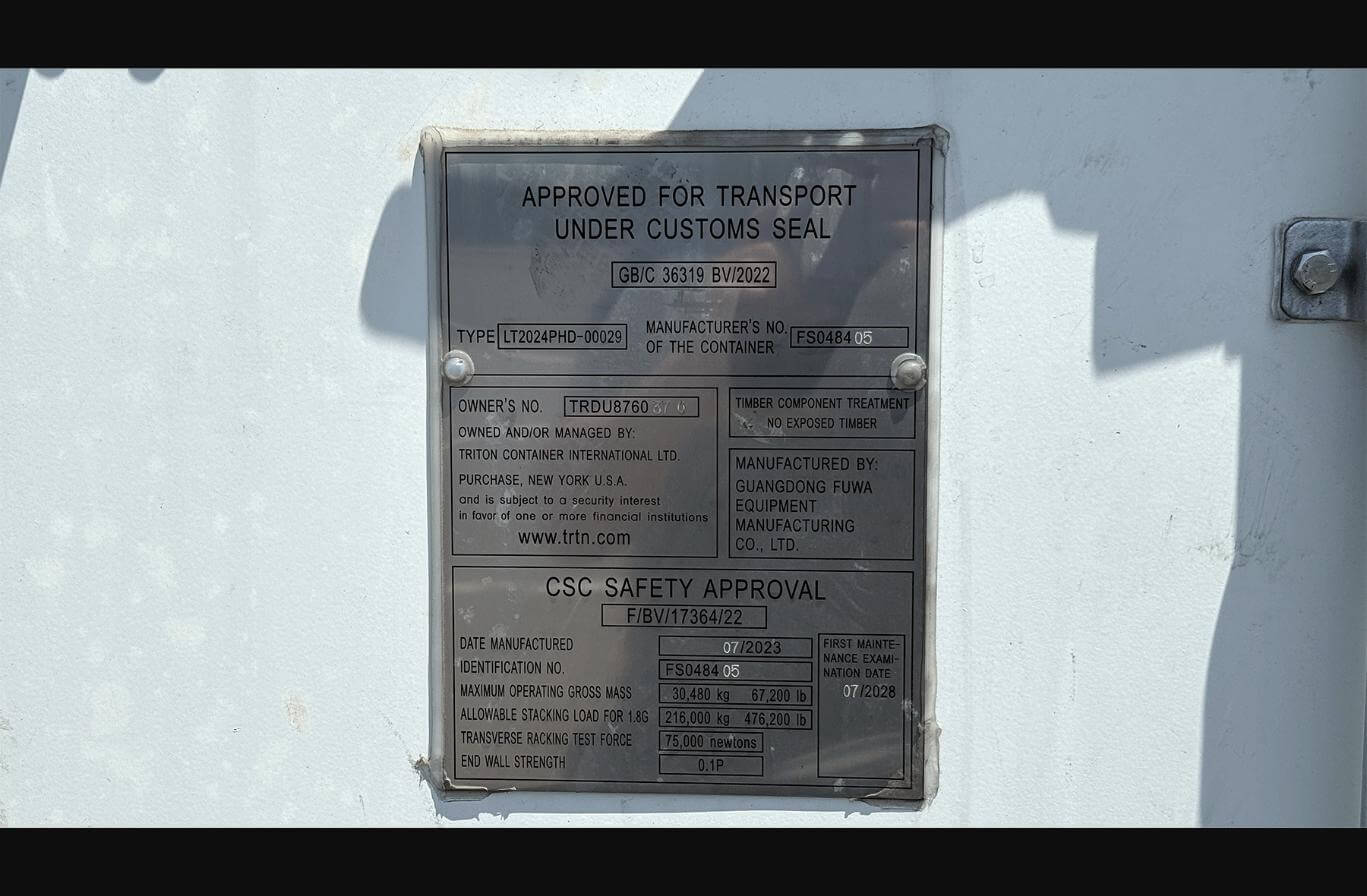

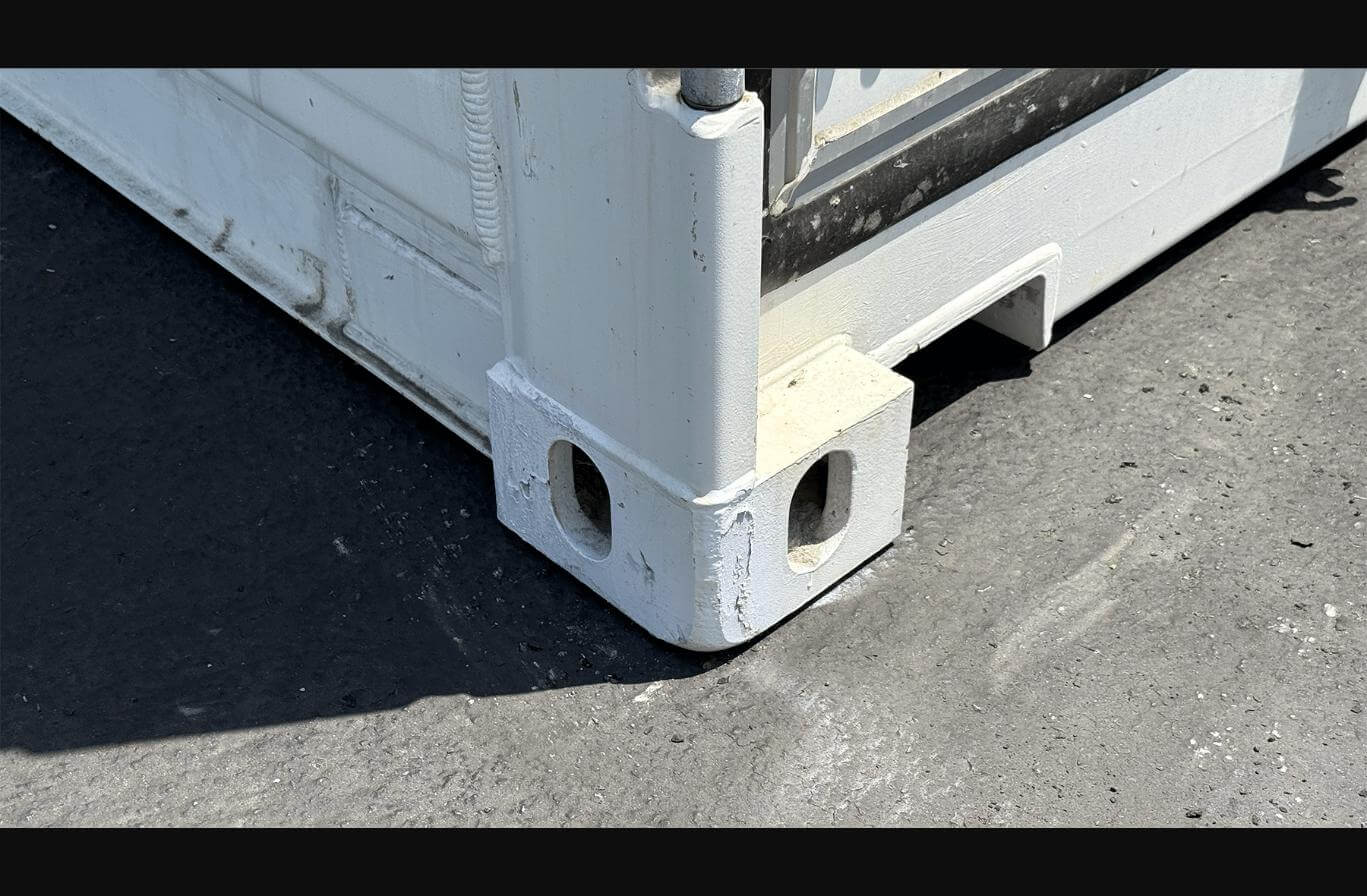

- ISO CSC-plated for safe stacking up to 216,000 lb.
- 10-year structural warranty backed by Cargo Co.
Additional Information
| Container Specification | |
|---|---|

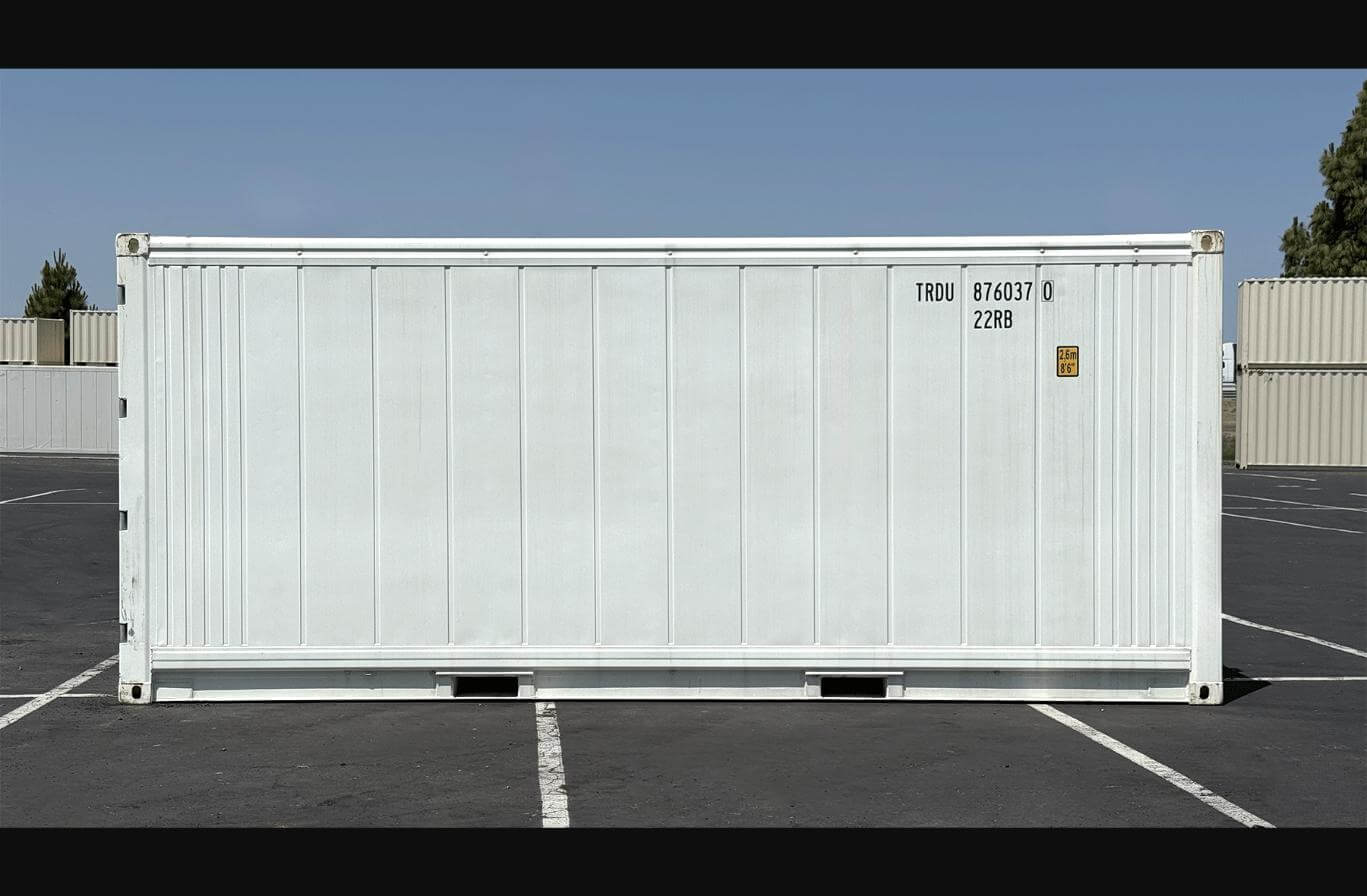

| Exterior Dimensions | 6.06 m L x 2.44 m W x 2.59 m H (20′ L x 8′ W x 8’6″ H) |
| Interior Dimensions | Approx. 5.64 m L x 2.29 m W x 2.26 m H (18’6″ x 7’6″ x 7’5″) |
| Cubic Capacity | Approx. 29.7 m³ (1,050 cu. ft.) |
| Construction | Brand-new ISO-grade CORTEN steel |
| Insulation | 3″ high-efficiency closed-cell spray foam |
| Flooring | Flat aluminium flooring |
| Doors | Dual cargo swing doors with heavy-duty weather seals |

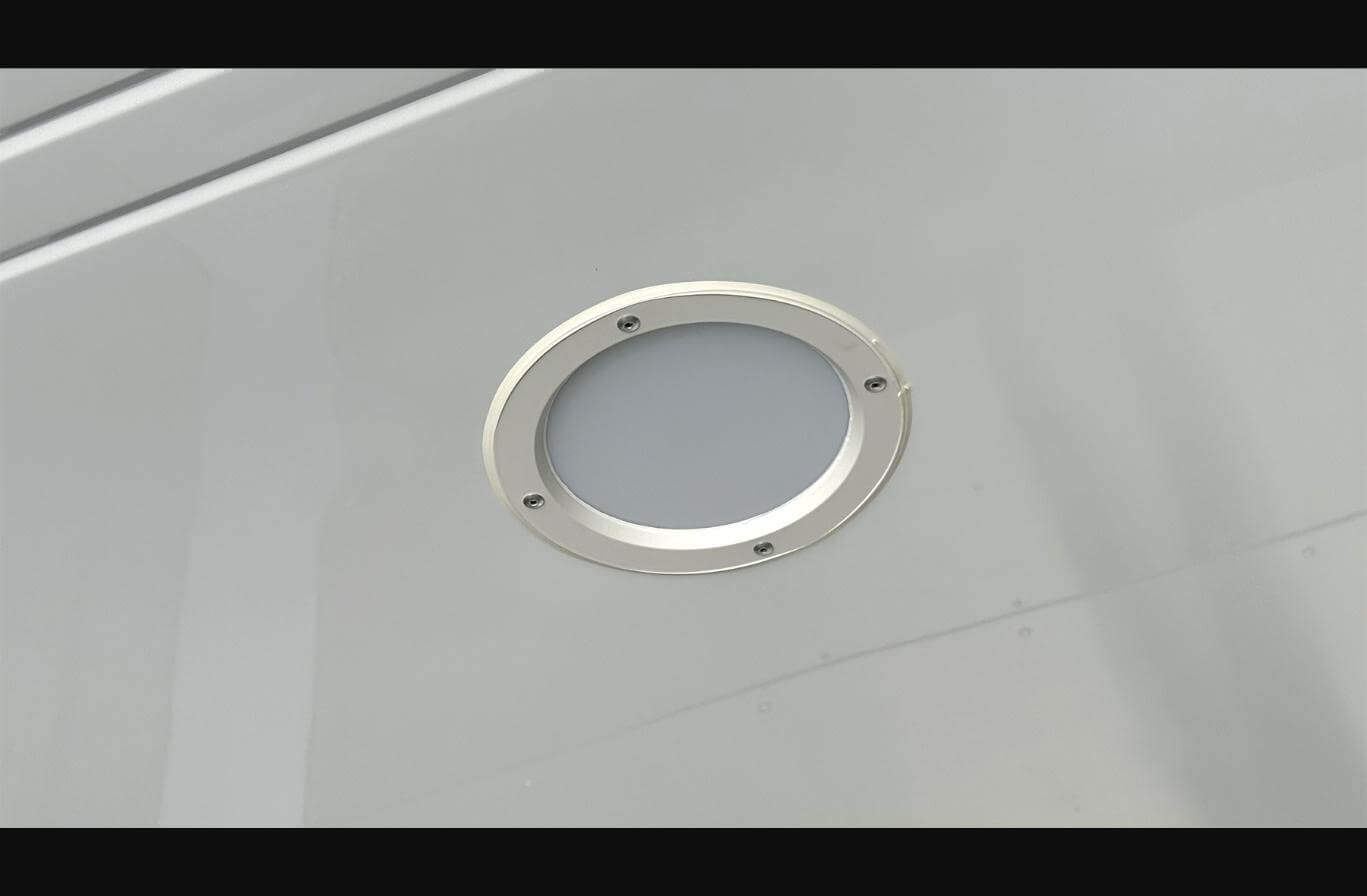

| Lighting | Interior LED lights included |
| Curtains | PVC strip curtains included at cargo door |
| Exterior Paint | Marine-grade paint finish |
| Forklift Pockets | Included for easy handling |
| Stacking Rating | ISO CSC plated (standard 216,000 lb) |
| Refrigeration Machinery | |

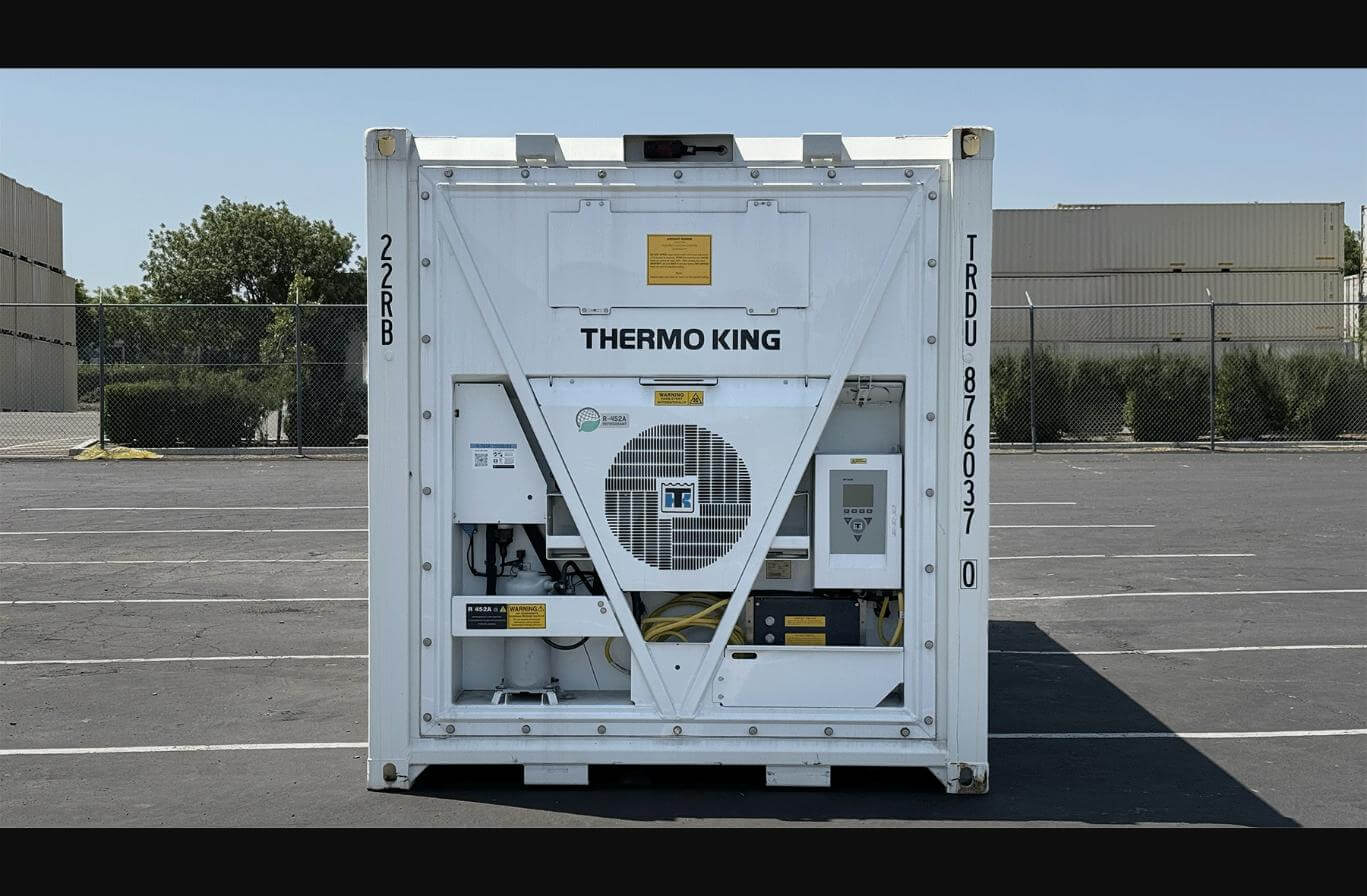

| Machinery Type | Thermo King Magnum Plus (brand-new) |
| Cooling Capacity | Approx. 16,000 BTU/hr at -29°C container setpoint |
| Temperature Range | -40°C to +21°C (-40°F to +70°F) |
| Controller | Thermo King MP-3000a Microprocessor Controller |
| Airflow | 2,200 CFM evaporator airflow |
| Defrost System | Automatic electric defrost with programmable cycles |
| Refrigerant | R-404A |
| Compressor Type | Scroll compressor with vapor injection |
| Voltage Requirements | 460V 3-Phase standard |
| Power Draw | Approx. 8–10 kW under full load |
| Optional Voltage Converter | Available for 230V single-phase operation |
| Data Monitoring | Built-in data logging and remote monitoring ready |
| Dehumidification | Standard mode adjustable 20% to 95% RH |
| Special Features | Economy mode, temperature hold, auto defrost, diagnostics, alarm system |
Why Choose Cargo Co
Every Cargo Co refrigerated container is thoroughly inspected and PTI tested before dispatch. We provide no-hidden-fees pricing, a 10-year structural warranty and Australia-wide delivery. Whether you need temporary cold storage for an event, a permanent freezer for your business or a reliable reefer for transport projects, our 20ft new reefer container is built to perform from day one.
